San Jacinto Fault Tour
Along with our other road trips along California’s San Andreas Fault, this tour is a bit different as it visits a sister fault to the San Andreas – the San Jacinto Fault. The San Jacinto is a major parallel fault sharing much of the stored-up energy from the sliding action between the North American and Pacific Plates. The San Jacinto is just as active as the San Andreas and has had more recent earthquake events.
Forward
For those that have watched the virtual video tour above, reading this blog post will give you more insight into the San Jacinto Fault. It also explains the touring route as well as more details about each stop that we’ll visit.
Like our other tours, see the Trip Map for an interactive map of our touring route and a link to download the GPX file we created containing the places covered in the tour. Using Gaia GPS’s Bedrock Geology layer plots the paths of both the San Jacinto and San Andreas, making it easy to find many of the features described in this tour.
Fault Terminology
This section on terminology is duplicated from our San Andreas Fault in San Bernardino post. The difference with the San Jacinto is that it isn’t a plate boundary like the San Andreas. However, it shares all of the characteristics of the San Andreas and probably shares a lot of same stored-up energy of the two plates sliding past each other, as do other related faults in the L.A. area such as the Elsinore/Whittier, Newport/Inglewood, and Palos Verdes Fault zones. Then there’s the Eastern California (or Mojave) Shear Zone, which is a series of faults also similar to the San Andreas that cover the Mojave Desert and stretch up into Owens Valley.
Throughout this tour, we’ll be visiting places where we can see signs of the San Andreas Fault. Those “signs” are what we call “fault features”. Here are some of those features explained.
Keep in mind that the San Andreas and San Jacinto isn’t just a regular fault like many others, it is a significantly large fault. It’s actually a plate boundary – the boundary between the North American Plate and the Pacific Plate. Both of these plates are experiencing what’s called continental drift and are literally sliding past (or rubbing against) each other very, very slowly. This edge or division between the two plates is the San Andreas Fault. Earthquakes occur when that sliding turns into a sudden jerk of movement. Explaining further involves a lengthy discussion of plate tectonics, which is out of scope of this article. Learn more by Googling “plate tectonics”.
The San Jacinto is known as a right-lateral strike-slip fault. That means, if you are standing on one side of the fault and looking towards the other side, the land on the other side of the fault would be moving to the right. That means, the land on the Pacific Plate, which would include the Los Angeles area, is moving northwest. The land on the North American Plate, including the San Bernardino Mountains and Mojave Desert to the north, is either stationary or moving very slowly to the southeast.
The fault isn’t always a single line or deep “crack” in the ground dividing the two plates. This is especially true with the San Jacinto as compared to the San Andreas. It can also be a “fault zone”. This zone can be anywhere from a hundred feet thick to 2-3 miles across. These zones consist of many factures or strands that are all related to each other.
Along the San Jacinto, the fault zone splits several times and becomes two separate faults, with one fading out. In the San Jacinto Valley and the town of Hemet, a split occurs where both faults on the map are labeled as the San Jacinto Zone. In the Anza-Borrego area though, each strand have separate names, neither of them with the word San or Jacinto. However, geologists recognize they are related to the San Jacinto.
Here are some of the fault features we’ll see in this tour:
- Fault scarp: an abrupt and straight edge, like a step in the contour of the land
- Shutter ridge: a straight and shallow trough in the ground
- Sag pond: a low depression where water is trapped by the fault’s impermeable barrier of crushed earth material and begins ponding
- Linear valley: a long and skinny valley created by a significant strike-slip fault like the San Andreas – on this tour, we’ll constantly be looking at Lone Pine Valley for reference, which is a linear valley

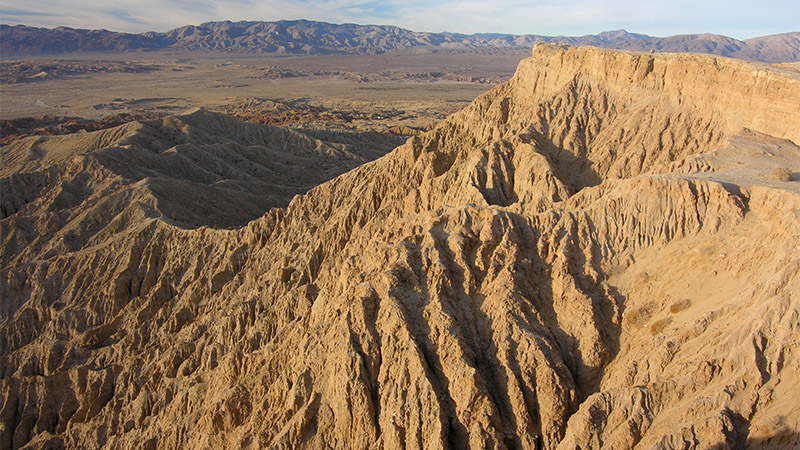

- Badlands: crumpled up land surface where movement between two faults pushed up previously flat land
Both scarps and shutter ridges were either created during an earthquake event or by slow movement along the fault, known as fault creep. Some scarps were created during earthquakes that occurred a few hundred years ago and still look like an abrupt step in the landscape. Other scarps are from earthquakes possibly thousands of years ago and are difficult to make out because natural erosion is slowly erasing them.
The challenge with looking for the San Jacinto Fault is that both large washes (drainages) and human development erased many of the fault’s traces. In some places, shutter ridges were not bulldozed and left as small hills, such as the example pictured above in San Bernardino. Between Hemet and Anza-Borrego, there are several linear valleys, some quite long, that are difficult to notice from the ground but obvious from above, such as shown using the Google Earth imagery in the video.
One fault feature that is very common along the San Jacinto and not found much on the San Andreas is the creation of badlands. This can be seen at the San Timoteo Badlands and in Anza-Borrego Desert State Park, mainly the Borrego Badlands.
Tour Route
This section will elaborate more on each of the places we visit on our video tour. Similar to our San Andreas Fault in San Bernardino tour, the route is difficult to follow with many, many left and right turns. There is also a much larger distance between the places we cover on the fault as compared to the other tour. For that reason, we’ll provide a list of addresses or placenames that you can navigate to, using your favorite navigation app like Google Maps. See the Places We Visit section below.
Northern End of the Fault & Jct w/I-15
Our tour begins where the fault crosses I-15 near Devore. According to geology maps, the fault actually begins several miles to the northwest in the San Gabriel Mountains west of Wrightwood. Some geological maps also refer to this section of the fault as the San Gabriel Fault. Looking on the map however, both the San Gabriel and San Jacinto line up to seem like one fault.
From near the Glen Helen Pkwy exit along I-15, looking to the northwest, you can see a low spot in a ridge that marks the fault. Looking the opposite direction to the southeast (across I-15 from Glen Helen Pkwy), the fault borders another ridge that is the southern edge of what’s called Mormon Battalion Mountain. This is the hill that sits to the south of Glen Helen Regional Park.
The flat area, known as Sycamore Flat, is an area stretched out by the fault. When we closely inspected the area, we thought we spotted a few fault scarps.

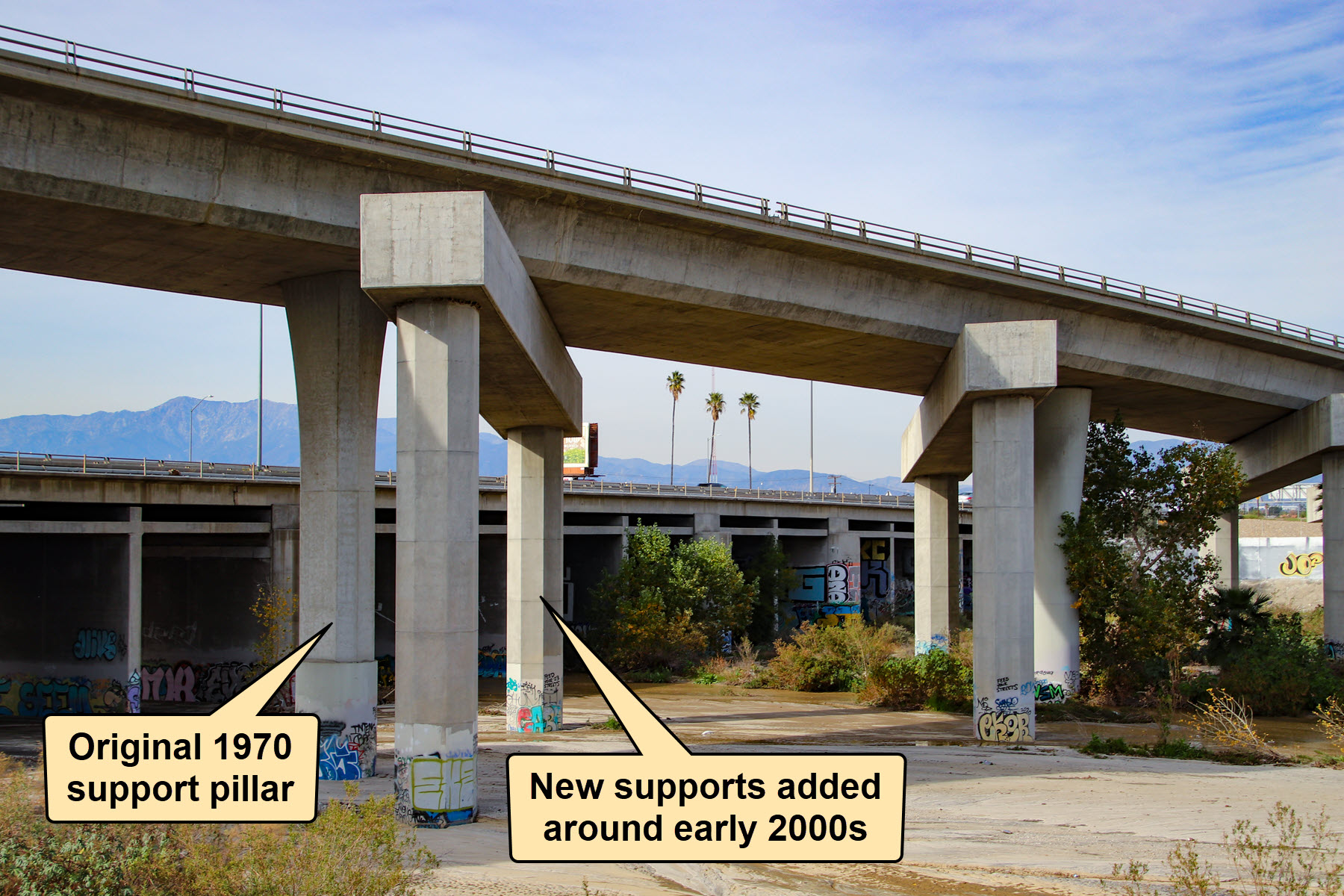

Fault Crossing 210 Fwy
Where the fault crosses over the 210 Freeway as depicted in the video tour, no trace of the fault can be found because of the large wash and drainage created by Lytle Creek. What may appear as a shutter ridge or fault scrap on the west side of the drainage is most likely a berm created by numerous flood events exiting the mountains for the last few thousand years. We were unable to find much evidence of the fault until S.B. Valley College.
San Bernardino Valley College & Bunker Hill

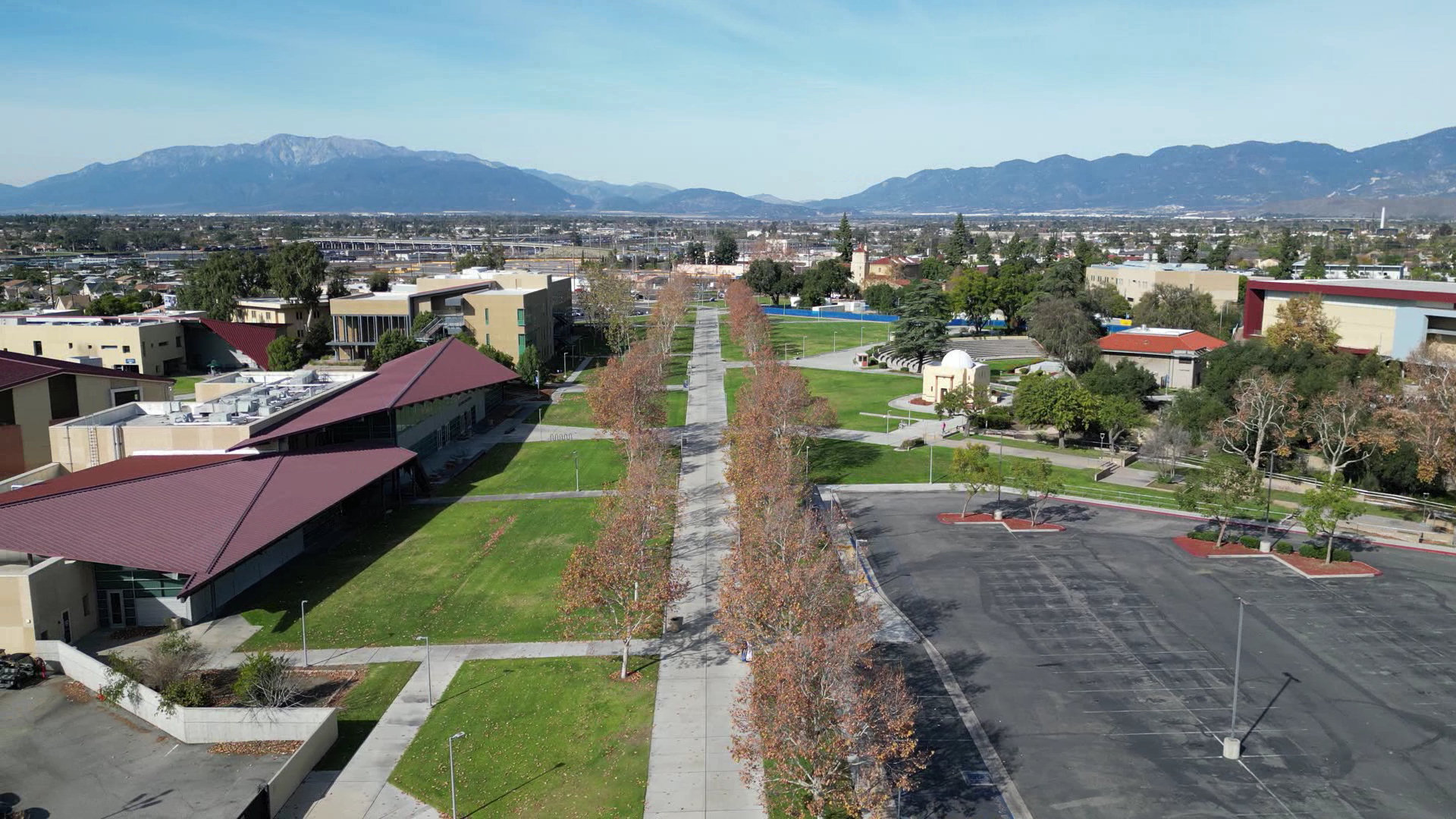

Buildings on the campus of San Bernardino Valley College were moved or rebuilt so that they don’t sit directly on the fault. A large walkway that trends southeast-northwest on the campus sits on top of the fault. Around 2000, there must have been enough concern that having these buildings right on top of the fault line was not a good idea. However, it is difficult to tell how important it was to physically move the buildings. Whether they are inches or miles from the fault, depending on how well they’re built, the buildings will still sustain damage.

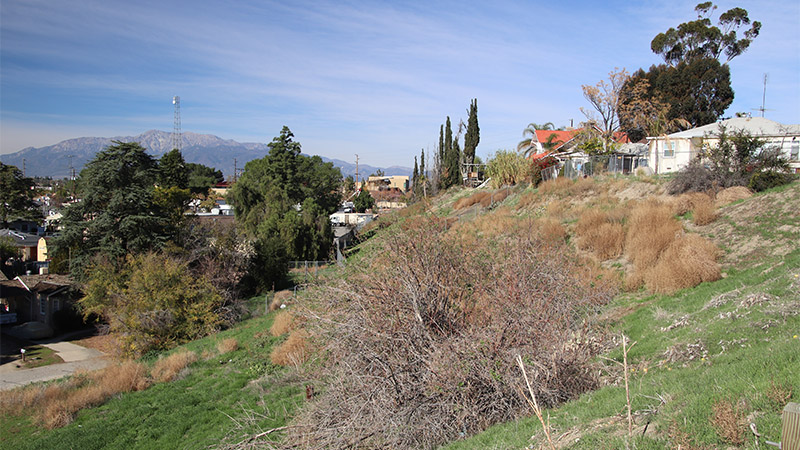

South of the campus across Grant Avenue, is a small hill named Bunker Hill. As pictured above, this is a shutter ridge that perfectly traces the fault.
More…
Support Us
Help us fill up our tank with gas for our next trip by donating $5 and we’ll bring you back more quality virtual tours of our trips!
Your credit card payment is safe and easy using PayPal. Click the [Donate] button to get started:
Pictures
Below are some pictures of what you will see along the way.
Highland
We continue west on Greenspot Road into Highland. The fault can be seen on the right, hugging the base of the mountains behind the neighborhoods. In one of the neighborhoods, a small park or greenspace is situated against the mountains and was built on top of the fault. Across Highland and San Bernardino, after city managers and developers realized homes were being built on top of the fault before the 1980s, land on top of the fault became off-limits to build on. To use up that space, parks or greenspaces were established.
That park can be found where San Benito Street turns into (corner of) Mc Lean Street. The long skinny park sits on top of the fault and is oriented in the direction of the fault that we’ve been following since Oak Glen.
We’ll then head up to Base Line Street, which is a main thoroughfare through Highland and San Bernadino. First, we’ll head to where it dead-ends by turning right from Greenspot Road onto Weaver Street, then right onto Base Line. In a short distance, the street passes by the base of the mountains on the left, which is where the fault sits. At Base Line’s dead-end, we can see the fault coming from where we just were at Seven Oaks Dam.
On Base Line, you’ll pass by the Natural Parkland Trailhead. The kiosks here talk about what to see in this nature preserve but does not mention the fault.
Just to the west of the trailhead along Base Line, topo maps show another sag pond. You can make out where it was (or is located during a wet year) by a large cluster of trees and a few palm trees near the intersection of Base Line and Alpin Street.
Heading west on Base Line, when we return to Weaver Street, we’ll turn right. This road turns into Highland Avenue, another main thoroughfare. After the road slowly turns to the west, turn left onto Cloverhill Drive. On the left, we’ll look at East Highland Reservoir, which is a converted sag pond and situated right on top of the fault. The sag pond is located inside a private club.
Continuing west on Highland Avenue, we cross over the 330 Freeway that climbs the mountains up to Big Bear and, just after the intersection, we’ll encounter a shopping center with Walmart being the anchor store. Unlike other shopping centers, the front face of the anchor store is not parallel to the street. Instead, it is angled about 15 degrees away from the street on its left side. Why is that? When you look at aerial imagery from a map, it is obvious – the angle is oriented to the San Andreas. Walmart sits directly on top of the fault. Taking a short drive around the backside of Walmart, the berm on the building’s north side is most likely a scarp but has been accentuated by terracing above it for the neighboring mobile home park.
Back to heading west on Base Line, turn right onto Orange Street. This leads us to an interesting loop road taking us through a small neighborhood built on top of the fault. It also offers a great view of the area around us including our next stop, the Yaamava’ Resort & Casino, formally known as San Manual.
The casino buildings were built on the south edge of the fault. Navigating to Piedmont Drive and Willow Drive will give you an overall view of the fault and its relationship to the casino property. The steep sloops on the north side of the property, is the fault. Then, we’ll head up Willow Drive to see more houses built on and next to the fault. In fact, most of Willow Drive is directly on top of the fault line plotted on the geologic map.
San Bernardino
From Highland, we’re going to make a big jump in distance to the northwest side of San Bernardino, to the campus of Cal State University San Bernardino. In between here and Highland, the fault continues to pass through many neighborhoods, including more parks like the one we saw earlier built on top of the fault.
We’ll navigate to Devils Canyon Road and Campus Parkway, then continue driving north up Devils Canyon towards the mountains. In the distance, we can see a set of large pipes coming down the mountainside. This is the California Aqueduct. It transports water all the way from Northern California. On the other side of the pipes is a large storage reservoir named Lake Silverwood. The buildings at the bottom of the pipes include a powerhouse that generates electricity to energize the pumps that carry the water through the aqueduct’s long length. Obviously, the aqueduct is a significant water source for the Inland Empire region.
Just before reaching the aqueduct facilities on Devils Canyon Road, both the San Andreas and another fault, named the Mill Creek Fault, cross the road and the aqueduct, which are the large above-ground pipes you’ll see on the left. The San Andreas crosses the street just before a grove of large eucalyptus trees, and the Mill Creek crosses it just after the trees.
One of course would wonder how well the aqueduct and these facilities would survive when a large earthquake on either of these faults will occur. We couldn’t find many details on what types of precautions engineers took to protect these facilities from violent shaking like the extra precautions taken at Seven Oaks Dam. The aqueduct was built in the 1960s and it wasn’t until around 1970 when geologists understood the significance of the San Andreas (of it being a plate boundary rather than an ordinary fault). One would hope that retrofits have been on-going that would protect vulnerable equipment from the shaking that will occur during the next earthquake.
Devore
Our next stop is the rural mountainside community of Devore, also known as a junction of two freeways leaving the Los Angeles area – Interstates 15 and 215. From Cal State S.B., we’re going to jump on the 215 Freeway, head north, exit at Devore Road, then turn right.
Just before exiting the freeway, looking to the right at the base of the mountains. You’ll see a few long abrupt ridges that look like fault scarps. These are easily mistaken for fault scarps along the San Andreas, but they are not. These are ridges that were cut into the landscape from erosion and violent floods that have come down from the adjacent steep mountainsides. The fault is located closer to the base of the mountains.
We’ll take the steep course of Devore Road north towards the mountains and continue north as it seems the main road turns to the left (west), which becomes Kenwood Street. Staying on Devore Road, it will soon turn right and turn into Foothill Street. After a few hundred feet, the fault runs parallel the road on the left. Further down, the road cuts through a ridge that was pushed up by the fault.
Turning right onto the next street, which is Knoll Street, we pass through a shallow dip or depression. Similar to when we visited East Highland Reservoir on Cloverhill Drive, a depression like this often marks where a strike-slip fault crosses a roadway. Several examples of such depressions can be found all around Devore. In fact, when we continue on Knoll Street for another few hundred feet, it crosses a second depression. This is the Tokay Hill Fault, named after nearby Tokay Hill. This fault is only a mile in length. Devore is actually riddled with a lot of shorter faults because of its proximity to the convergence between the San Bernardino and San Gabriel Mountains.
Tour’s End
This concludes our touring route of the San Andreas Fault between Oak Glen and Devore. While high up in Devore, as you drive around the streets, be on the lookout for traces of the fault alongside the base of the mountains – where the semi-steep neighborhoods of Devore transition to the very steep edge of the San Bernardino Mountains.
Seeing the sights between Oak Glen and Devore will certainly take up a good part of the day. To spend another day touring the San Andreas, you can pickup the beginning of our San Andreas Fault tour near Wrightwood, which begins a few miles north up Route 66 from Devore.
What We Found Interesting
When we went on this tour to investigate the details and photograph the places you’ll see, there were several things that we found interesting, maybe even odd.
In general, we were amazed that there were no signs or kiosks pointing out the location of the San Andreas anywhere along our tour route. Where roads crossed the fault and it was easy to see it, in order to gain more public awareness, it would be helpful to place signs indicating where roads cross the fault. Along with the kiosk signs that we read along the tour explaining the surrounding nature, it would be easy to add a paragraph, or even a separate sign, that explains how the surrounding landscape has been affected by the San Andreas.
In other places in California, such as near Paso Robles and in the Bay Area, signs have been installed indicating that you are crossing the fault or simply looking at its trace. Installing some signs such as these may be helpful in educating people living with the fault in the Inland Empire region.
When we encountered and talked to three different people during our drive, we were surprised that they were not aware that they were standing very near the fault. Naturally, we don’t expect the common person to know the location of the fault. The science of geology behind fault systems like the San Andreas is complex. However, certainly in Florida, residents there understand how weather systems take shape and run its course. It’s surprising that in the Inland Empire area, people don’t seem concerned or aware of the various faults. That will probably change when the next large earthquake hits this region.
When living near the region (Victor Valley) for many years and attending various geology classes, it has come to our attention that two significant earthquakes occurred on the San Andreas somewhere near Wrightwood in 1812 that would have impacted the area this tour covers. Called the Capistrano or Wrightwood earthquake, it shook a large area of Southern California. The only known deaths were 40 Native Americans attending mass at Mission San Juan Capistrano, which was poorly constructed. Since the area was barely populated then, there were no accounts of the quake, other than the occupants of the missions. Geologists studying this portion of the San Andreas agree that the event most likely occurred on it or the nearby San Jacinto fault. The magnitude was estimated to be between 6.9 and 7.5.
With the 1812 quakes in mind, no other known event occurred on the San Andreas from Wrightwood, down to the Coachella Valley (Palm Springs). The age-old question still exists quandary still exists, on average, how often does an earthquake occur on the San Andreas at different places? This is a question that geologists are having a hard time answering.
The Places We Visit
This section lists the places we visited and mentioned in the tour description above, as well as the various fault features you can find. If you use a navigation app like Google Maps, you should be able to key these intersections, addresses and placenames into the app, and it will navigate you to each of the places.
Along with the places to navigate below, it is very helpful to use the Gaia GPS app, along with the downloadable GPX file we provide below, to locate these places, along with where the San Andreas Fault and zone is located using the app’s Bedrock Geology layer.
This list of places is available for PDF download below. Once the PDF is loaded on your phone, you can open it, then “tap and hold” to select the placenames or addresses, copy them to the clipboard, switch to a mapping app, then paste them into the search box of the mapping app. Using this method, you can quickly and easily navigate to each of the places.
Oak Glen Rd & Glen Rd, Oak Glen – the beginning of our tour – head west or downhill
38392 Oak Glen Rd, Oak Glen – Apple Blossom Ranch; fault is behind these buildings
0.3 mile down Oak Glen Rd – large turnout on the right; offers a great view of the San Andreas Fault to the northwest to Lone Pine Canyon (Cajon Pass) 40 miles “crow fly” away
38490 Oak Glen Rd, Yucaipa – fault is behind the Oak Glen Steak House
0.6 mile past Steak House – fault can be seen on the right as a straight line where the gradual slope turns to a steep mountainside
Yucaipa Ridge Rd & Quartz St, Yucaipa – head up this steep road to view both a sag pond and well-defined shutter ridge
0.7 mile from Bryant St & Hwy 38 – turn around at the large turnout on the left (west); this is where the San Andreas Fault crosses the road and the Mill Creek drainage
Old Greenspot Bridge – trailhead for walking up to the old bridge and examine the area and kiosks – the top of Seven Oaks Dam can be seen up the canyon
San Benito St & Mc Lean St, Highland – long skinny park or greenspace situated on top of the fault
Base Line St & Brookwood Lane, Highland – Natural Parkland Trailhead; road is next to the fault on the mountain side; Base Line will dead-end with a view of the fault heading back towards Seven Oaks Dam
Base Line St & Aplin St – sag pond just north of this intersection
Highland Ave & Pleasant View Ln – fault crosses diagonally over this intersection; notice the skinny long “no-man’s land” that exists between the rows of homes on both sides of the road
6892 Cloverhill Dr, Highland – just beyond the Spring Lake Clubhouse, on the left is the East Highland Reservoir, a sag pond located on the fault
4210 Highland Ave, Highland – Walmart just past the 330 Freeway; building is oriented in the direction of the fault; Walmart sits directly on top of the fault
3435 Holly Cir Dr, Highland – loop road going through small neighborhood next to fault with great views of valley below
Yaamava’ Resort & Casino – fault is located directly behind casino buildings on Piedmont Drive
Willow Dr & Hemlock Dr, San Bernardino – street and houses located directly on the fault
Hill Dr & Acacia Ave, San Bernardino – Newberry Memorial Park is another greenspace located on the fault
Devils Canyon Rd & Campus Pkwy, San Bernardino – pass by Cal State San Bernardino campus and head up Devils Canyon to view California Aqueduct facilities; faults are located near grove of eucalyptus trees
Dement St & Cable Canyon Rd, San Bernardino – looking up Cable Canyon Rd, long abrupt ridges that look like fault scarps are not; fault is at base of mountains
Knoll St & Foothill St – head south on Knoll Street to see the two depressions the street passes through, the first being the San Andreas Fault and the second the Tokay Hill Fault
Swarthout Canyon Rd & Cajon Blvd – beginning of our San Andreas Fault tour near Wrightwood
Click here to download a PDF file of this list of places along the tour. Remember to copy/paste these placenames and addresses from the PDF onto the search box of your navigation app (e.g., Google Maps).
Trip Map
To help plan your trip, either use our interactive Google Map below or download our GPX file that points out the places to see that are mentioned in this chapter.
Click here to download our GPX file that follows our tour of the San Andreas Fault through San Bernardino. We recommend using a GPS mapping app, such as Gaia GPS, to view these points on your computer or to locate them using GPS with your mobile device or phone. Click the ad below to purchase Gaia GPS using our discount code which offers up to a 50% discount.
Learn more about our maps.
